Product Overview

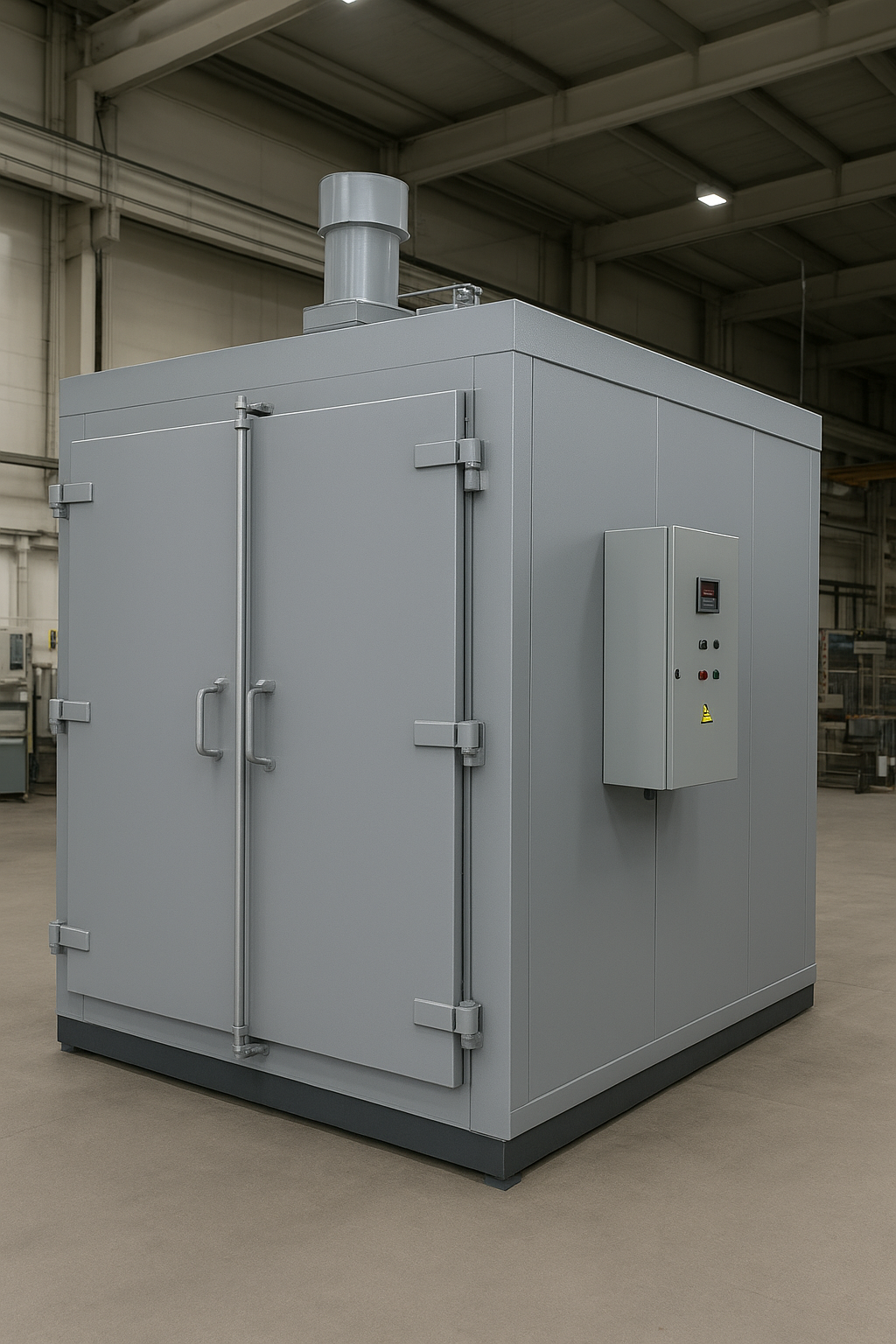

The Large Component Heating Chambers from SJ Extrusion are specially designed for oversized industrial components that require uniform and controlled heating. These chambers are ideal for processes such as preheating, stress relieving, coating curing, and thermal expansion testing of large metal structures, molds, and fabricated assemblies.
Features
- Custom-built chambers for large and heavy components.
- Uniform air circulation ensuring consistent temperature distribution.
- Temperature range from Ambient to 600°C (customizable).
- Heavy-duty insulated doors and structural framework.
- Digital PID controller with multi-zone temperature monitoring.
- Electric, gas, or diesel-fired heating systems available.
- Optional trolley or track-based loading systems.
Applications
- Preheating of large dies, tools, and molds.
- Stress relieving of welded and fabricated structures.
- Curing of large coated or painted assemblies.
- Drying and heating of heavy machinery parts and castings.
- Heat treatment processes for large-scale components.
Technical Specifications
| Model | SJ-LCHC-6000 |
|---|---|
| Chamber Size (mm) | 6000 x 4000 x 4000 (Customizable) |
| Temperature Range | Ambient – 600°C |
| Heating Type | Electric / Gas / Diesel |
| Air Circulation | Motorized Blowers |
| Construction | MS / SS Double Wall, Insulated |
| Control System | PID Controller / PLC + HMI (Optional) |
